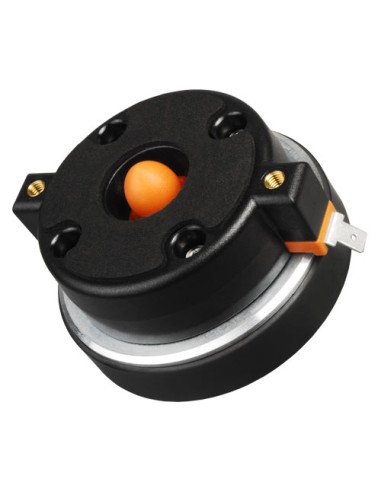

HF100 DRIVER 1" 60W 8 OHM 108DB
product discount product category name HF100
HF100 DRIVER 1" 60W 8 OHM 108DB

HF100 DRIVER 1" 60W 8 OHM 108DB

HF100
Ultimi articoli in magazzino
78,00 €
Tasse incluse



Nominal Specifications

Overall Diameter 3.39", 86 mm

Depth 2.13", 54 mm

180° Mounting Holes Diameter (2xM6) 2.99", 76 mm

Throat Diameter 1", 25.4 mm


Electrical Specifications

Nominal Impedance 8 Ohm

Minimum Impedance 7 Ohm

Re 6 Ohm

Minimum Crossover Frequency* 2.6 kHz

Sensitivity (1W/1m)** 106 dB

Frequency Range 1.5 - 20 kHz

Nominal Power Handling*** 30 W

Maximum Power Handling**** 60 W

Diaphragm Material Ketone Polymer

Voice Coil Diameter 1.02", 26 mm

Winding Depth 0.07", 1.7 mm

Former Material Kapton

Magnetic Gap Depth 0.08", 2 mm

Flux Density 1.4 T

Winding Material Copper Clad Aluminium




Tipo
Driver
Impedenza
8ohm
Sensibilità
108db
V.C.
25mm
Risposta in Frequenza
1500-20000hz
Magnete
Ferrite
Membrana
Kapton
Potenza Max
60w
Potenza RMS
30w
Attacco/Gola
1"
Diametro
86mm
