product discount product category name 10HP1020-8
product discount product category name 10HP1020-8

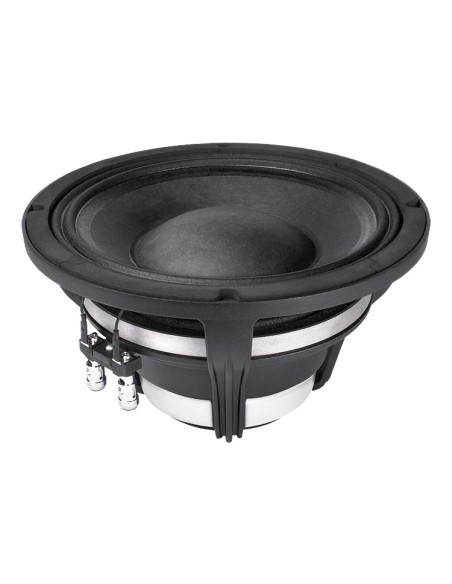

10HP1020 Faital PRO Woofer altoparlante neodimio 10" 1400W 8 Ohm 10HP1020-8

10HP1020-8
Non disponibile
340,00 €
Tasse incluse




NOMINAL SPECIFICATIONS



Nominal Diameter    250 mm (10 in)

Overall Diameter    261 mm (10.28 in)

Bolt Circle Diameter    246 mm (9.69 in)

Baffle Cutout Diameter    230 mm (9.06 in)

Depth    141.3 mm (5.56 in)

Flange and Gasket Thickness    12.5 mm (0.49 in)

Net Weight    5.2 Kg (11.44 lb)

Shipping Box

(Single Carton Box)    294x290x203 mm

(11.57x11.41x7.99 in)

Shipping Weight    5.8 Kg (12.79 lb)





TECHNICAL PARAMETERS



Nominal Impedance    8 Ohm

Minimum Impedance    7.3 Ohm

AES Power Handling (1)    700 W

Maximum Power Handling (2)    1400 W

Sensitivity (1W/1m)    96 dB

Frequency Range    60÷4000 Hz

Voice Coil Diameter    100 mm (4 in)

Winding Material    Al

Former Material    Glass Fiber

Winding Depth    22 mm (0.87 in)

Magnetic Gap Depth    12 mm (0.47 in)

Flux Density    1.3 T

Magnet    Neodymium Slug

Basket Material    Aluminum

Demodulation    No

Cone Surround (3)    M-Roll

NET Air Volume filled by Loudspeaker    2.2 dm^3 (0.078 ft^3)

Spider Profile    2x non-adjacent symmetrical constant height waves


Tipo
Mid Woofer
Sensibilità
96db
V.C.
100mm
Magnete
Neodimio
Cestello
Alluminio
Potenza Max
1400w
Potenza RMS
700w
Diametro
10" - 250mm
