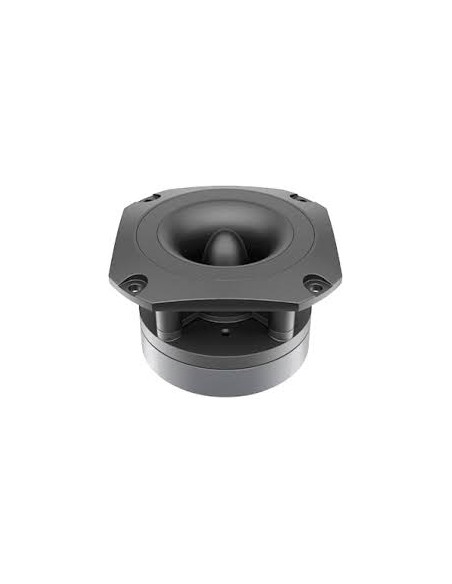

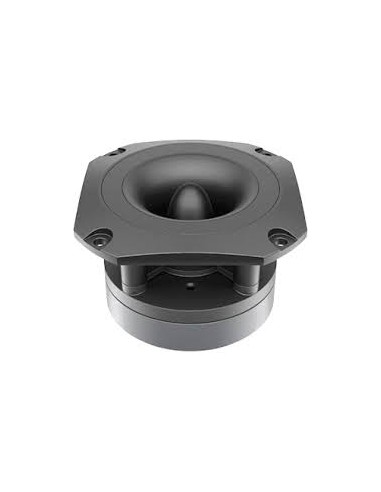

BF10.10LA Tweeter a Compressione La voce 86x86 40w 106db v.c.25mm
CARATTERISTICHE PRINCIPALI
- 1 INCH CCAW VOICE COIL
- 106 dB/SPL SENSITIVITY
- 40 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 2500 - 18000 Hz FREQUENCY RANGE
- ALUMINIUM DIAPHRAGM
- NEXT GENERATION HF DESIGN
Specifiche
Nominal impedance 8 Ohm
Minimum impedance 7,5 Ohm
Program power (1) W 40 AES
Power rating (2) W 20
Sensitivity (3) dB 106
Frequency range Hz 2500 ÷ 18000
Voice coil diameter mm (in.) 25,4 (1)
Magnet material Ferrite Magnet OD mm (in.) 72 (2.8)
Coil material CCAW
Former material Kapton
Diaphragm material Aluminium
Surround material Aluminium
Voice coil Inductance mH 0,03
Flux density T 1,5
Recommended crossover (4) Hz 5000
Driver displacement volume l (ft3 ) 0,2 (0.007)
